Explore: Magnetic Standoffs - Secure Mounting Solutions

Dr. Antwon Grant 22 May 2025

In the realm of engineering and design, where precision and aesthetics converge, have you ever pondered the unsung heroes that hold everything together? Magnetic standoffs, often overlooked, are the versatile components that ensure secure and visually striking separations between objects, essential in a world demanding both form and function.

These seemingly simple hardware elements play a pivotal role in various applications, from mounting electronic components within compact spaces to enhancing the visual appeal of signage and displays. Their ability to provide a secure, often easily adjustable, separation between surfaces makes them invaluable in a multitude of scenarios. From the intricate workings of electronic devices like Raspberry Pi boards to the elegant presentation of acrylic signage, magnetic standoffs offer a seamless and often invisible solution.

Lets delve into the world of these essential components and understand their crucial role, their diverse applications, and the ingenuity behind their design.

Consider the requirements of modern quality departments. With the need for repeatable and durable fixtures, Rayco standoffs are a strong contender in ensuring modularity in design. They are specifically designed to create modular fixtures for easy design and installation. Rayco's dedication to customer satisfaction further manifests in its commitment to providing custom thread types of varying sizes, ensuring that each customer's unique needs are perfectly met. These features highlight the adaptability and precision that are hallmarks of modern manufacturing. In essence, Rayco standoffs provide a solid base for precision and durability.

Magnetic standoffs are a versatile hardware component, with a wide range of applications in the modern world. They are designed for creating a secure and visually appealing separation between objects, especially in areas like signage and design. The core function is to hold components at a specific distance from a mounting surface, thereby ensuring a degree of separation. This simple function is pivotal in a multitude of scenarios.

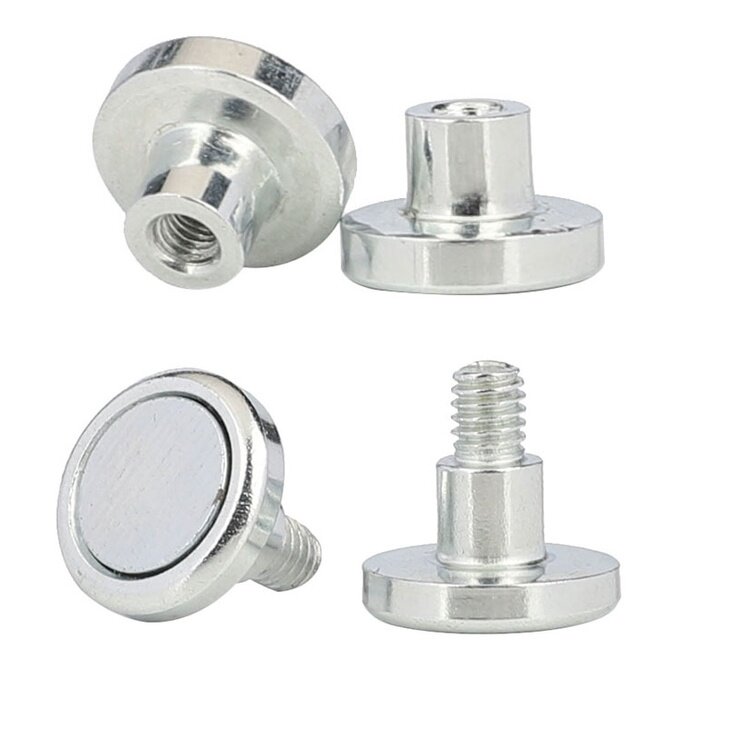

Lets take a look at the basic components, The base and the magnet form the functional core of magnetic standoffs. The base typically attaches to the electronic component, and the magnet is attached to the surface where the component is to be mounted. This simple structure belies its effectiveness, as the magnetic force securely holds the component in place while providing an essential separation.

One application is in the mounting of electronic components, such as Raspberry Pi boards. These small devices securely hold these complex components in place. The base is typically attached to the electronic component, and the magnet is attached to the mounting surface.

Altronix mounting magnets, on the other hand, have been designed to accommodate screws and nylon standoffs, thereby enabling the mounting of various boards and accessories within any metal enclosure or backplane. The very design allows the nut to be tightened while still allowing a degree of movement within the magnetic standoffs. This is especially beneficial when these magnets are used on curved metal surfaces, as it allows the magnets to conform to the shape of the surface.

For those looking to mount Konnected devices, magnetic standoffs offer another option. The magnetic base adheres firmly to the metal enclosure, suspending the Konnected board securely. It's easily movable and removable, allowing for flexibility in design and adjustment.

When considering brass standoffs, its important to remember that while they have the strongest pull, they shouldnt be mounted directly to steel, because steel will create a magnetic short circuit, which reduces their pull. These are details that the discerning user will consider when determining the best option.

The Mag Daddy PCBM1903F magnetic standoff kit provides an excellent example of how these components work. The kit includes a 10 lb magnetic mount and 5/8 nylon hex spacers. Sanasight technologies also offers 4 M2.5 magnetic standoffs for small electronics, and the options are plentiful when you need this type of device.

The magnetic standoffs are designed for holding ferrous workpieces. And their versatility doesnt end there, with some companies offering same and next day delivery.

The development of these components has been helped by experts. These risers were developed by a manufacturing engineer with years of experience in CNC programming, machining, 3D modeling, printing, and laser cutting and engraving. This 1.1 magnetic riser is built to reduce flashback during laser cutting, thereby reducing the need for cleanup and allowing for more precision in design. For those needing to mount panels, magnetic MBS's panel mount standoffs are quick and easy. They are a quick and easy method to mount 1/8 to 5/16 inch acrylic signage or decorative panels to any substrate without requiring assistance.

Standoffs are components used to space media at a fixed distance from a mounting surface. The design of the standoff system determines the distance between the wall and the sign. The primary components of a standoff system are barrels and standoff caps. These elements work in concert to create a secure and visually appealing mounting solution. Whether it's the simple elegance of signage or the complex requirements of electronics, magnetic standoffs provide the solution.

Feature	Details
Key Functionality	Providing secure and visually appealing separation between objects; mounting electronic components, signage, and decorative panels.
Core Components	Base (attaches to the component), Magnet (attaches to the mounting surface).
Material Considerations	Brass standoffs offer strong pull but should not be directly mounted to steel.
Specific Applications	Mounting Raspberry Pi boards, Konnected devices, acrylic signage, and various boards/accessories in metal enclosures.
Design Advantages	Easily movable, removable, and adaptable to curved surfaces.
Common Configurations	Kits with magnetic mounts and nylon spacers.
Specialized Features	Designed to reduce flashback during laser cutting, offering quick and easy panel mounting, and accommodating different mounting solutions.

As weve seen, the world of magnetic standoffs is full of innovation and ingenuity. Whether you are an engineer looking to design the next electronic marvel, or a designer looking to create a new method of signage, the right standoff may provide the answer youve been seeking.

The versatility, adaptability, and precision offered by these components make them an integral part of modern engineering, design, and manufacturing. With continued advances in materials, manufacturing techniques, and a growing appreciation for aesthetic integration, the future of magnetic standoffs is sure to see an expansion of uses and applications.
